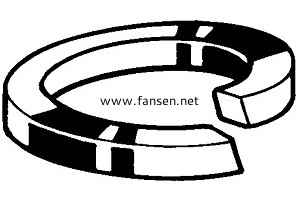

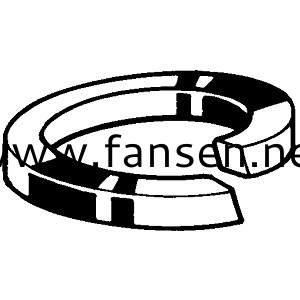

DIN7980 Single Coil Spring Lock Washers (For Screws With Cylindrical Head ) 彈簧墊圈

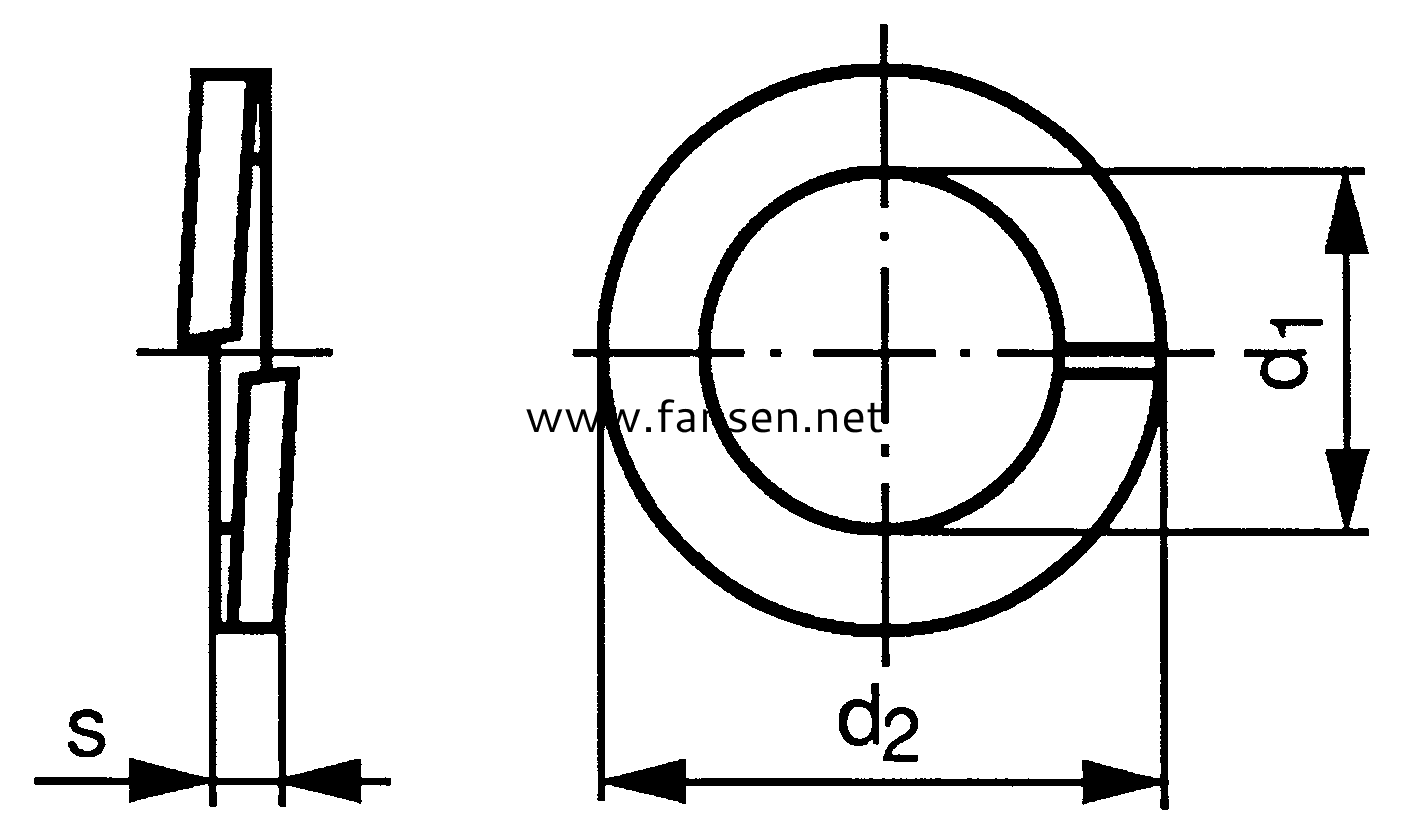

Thread | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
d1 | 3.1 | 4.1 | 5.1 | 6.1 | 8,1 | 10.2 | 12.2 | 14.2 | 16.2 | 18.2 | 20.2 | 22.5 | 24.5 |
d2 | 5.6 | 7 | 8.8 | 9.9 | 12..7 | 16 | 18 | 21.1 | 24.4 | 26.4 | 30.6 | 32.9 | 25.9 |
s | 1 | 1.2 | 1.6 | 1.6 | 2 | 2.5 | 2.5 | 3 | 3.5 | 3.5 | 4.5 | 4.5 | 5 |
