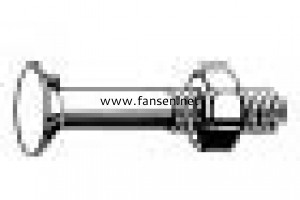

DIN604 Flat Countersunk Nib Bolts 沉頭帶榫螺栓
DIN604 Flat Countersunk Nib Bolts 沉頭帶榫螺栓
- 標準： DIN604
- 材料： C1035 SUS304
- 性能： 8.8 A2
- 表面顏色： 藍白鋅 本色
- 產(chǎn)品資料下載：
DIN604 Flat Countersunk Nib Bolts 沉頭帶榫螺栓
|
thread |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
|
|
P |
1 |
1.25 |
1.5 |
1.75 |
2 |
2.5 |
3 |
|
|
b |
18 |
22 |
26 |
30 |
38 |
46 |
54 |
|
|
dk |
max |
12.55 |
16.55 |
19.65 |
24.65 |
32.8 |
32.8 |
38.8 |
|
min |
11.45 |
15.45 |
18.35 |
23.35 |
31.2 |
31.2 |
37.2 |
|
|
k |
4 |
5 |
5.5 |
7 |
9 |
11.5 |
13 |
|
|
ds |
max |
6 |
8 |
10 |
12 |
16 |
20 |
24 |
|
min |
5.52 |
7.42 |
9.42 |
11.3 |
15.3 |
19.16 |
23.16 |
|
|
g |
max |
2.5 |
3 |
3.2 |
3.6 |
4.2 |
5.4 |
6.6 |
|
min |
2.1 |
2.6 |
2.72 |
3.12 |
3.72 |
4.92 |
6.02 |
|
|
L |
20-160 |
|||||||
